Core Highlights

2nd Generation Major Upgrade: Full support for WiFi, IR, and NINA, plus OTA firmware upgrade capability.

- Flicker-Free Dimming Circuit (Exclusive Design):

- High-brightness / Low-brightness dual modes

- 0–255 step fine dimming per mode

- Perfectly compatible with narrowband & broadband imaging requirements

- Flicker-free at any shutter speed, compatible with a wide range of telescope focal ratios

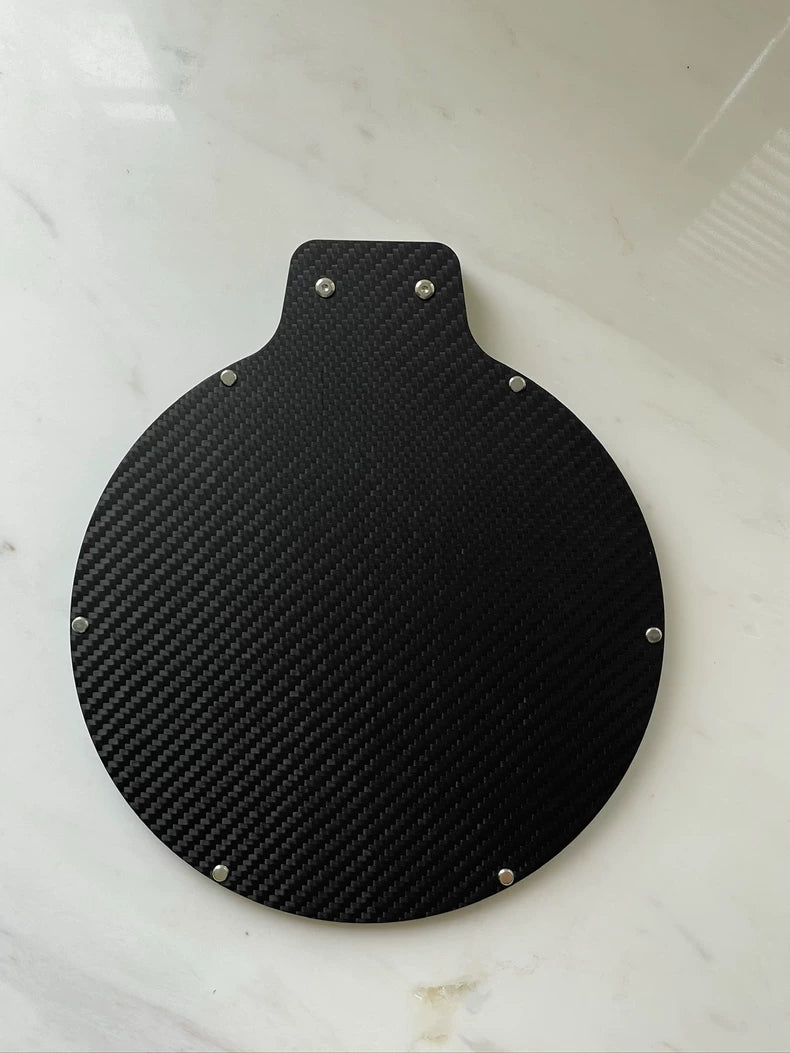

- Material:Carbon fiber + aerospace-grade aluminum alloy, lightweight and durable

Technical Specifications

-Power Supply :5V (USB powered)

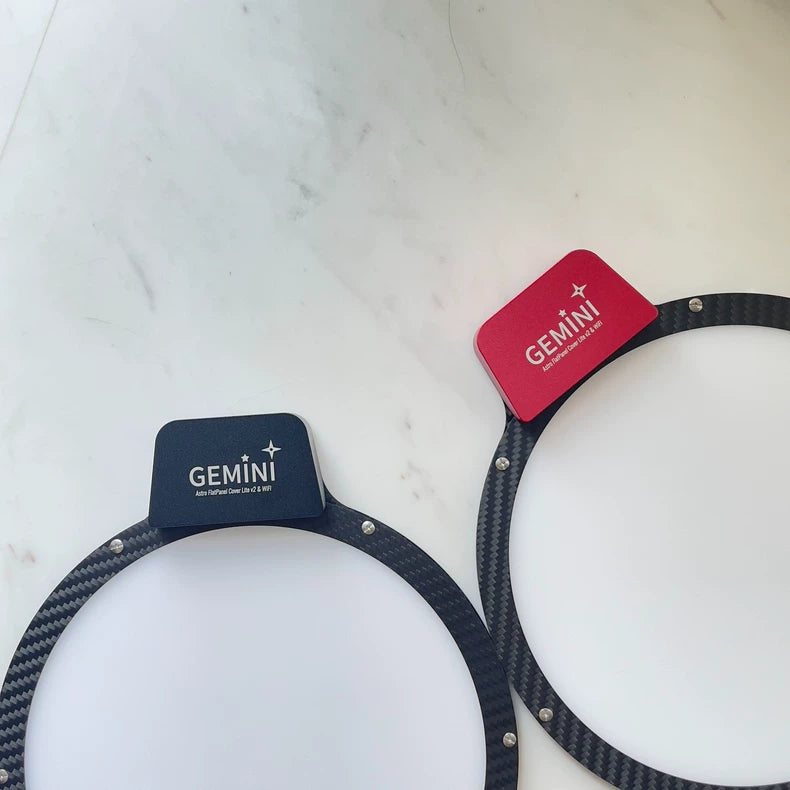

-Illuminated Aperture: 150mm / 190mm / 240mm / 300mm (330mm / 400mm available by pre-order)

-Control Methods : USB (ASCOM / NINA), IR Remote, WiFi

-Dimming Precision: 0–255 steps × High/Low brightness dual modes

-Firmware Upgrade : OTA supported

Size Selection Guide

Measurement Method:Measure the outer diameter of your telescope's dew shield. Select the model whose illuminated aperture is greater thanthe dew shield's outer diameter.

Control & Operation Methods

Recommended Methods (Top choice for control box users)

- IR Remote Control: 0–255 step dimming, fast switching via presets

- WiFi Control (Cross-platform, no OS restrictions)

 - Connect to hotspot: `Gemini_LiteFP_AP`

 - Password: `12345678`

 - Open control panel via browser: `192.168.4.1`

 - Supports mobile phones, iPads, and computers

Traditional / PC Control

- Connect USB cable to PC → Install ASCOM driver → Control via NINA → Capture flats using Flat Assistant

Portable Power Supply

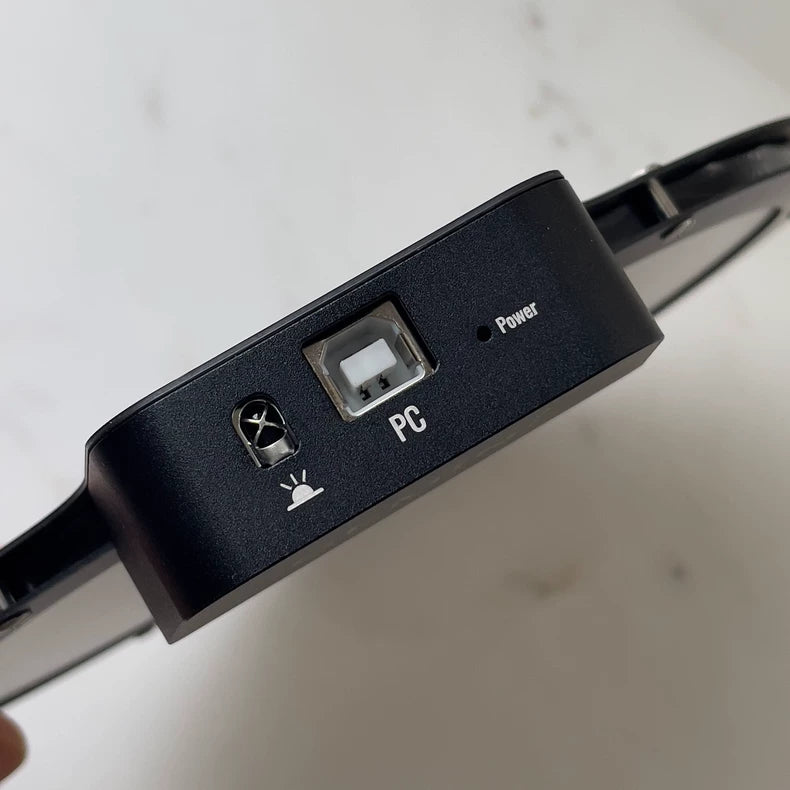

- USB cable can be plugged into a computer, control box, or power bank for both power and control

Standard Package Contents

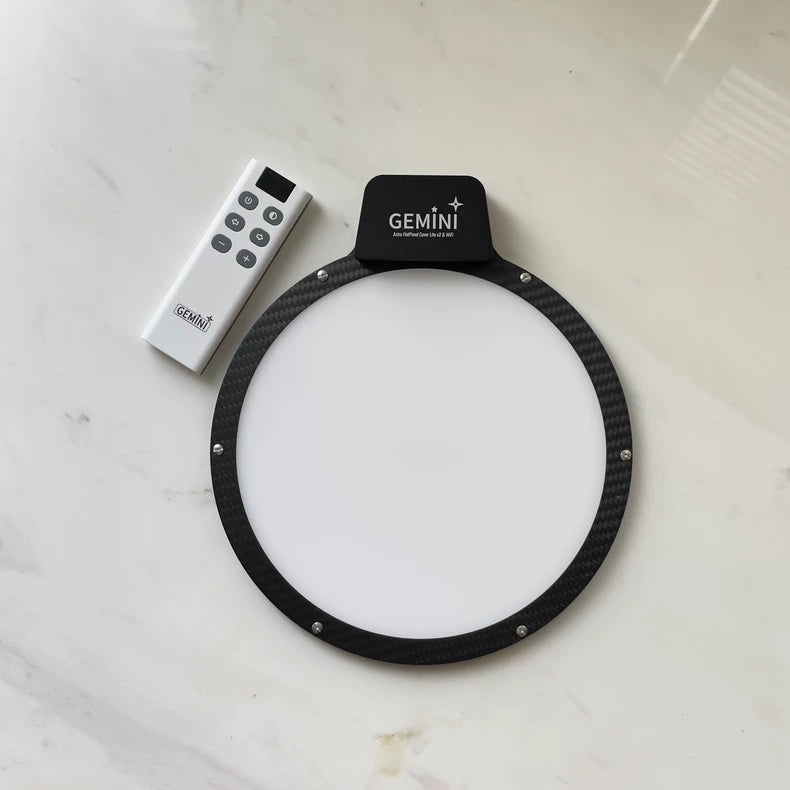

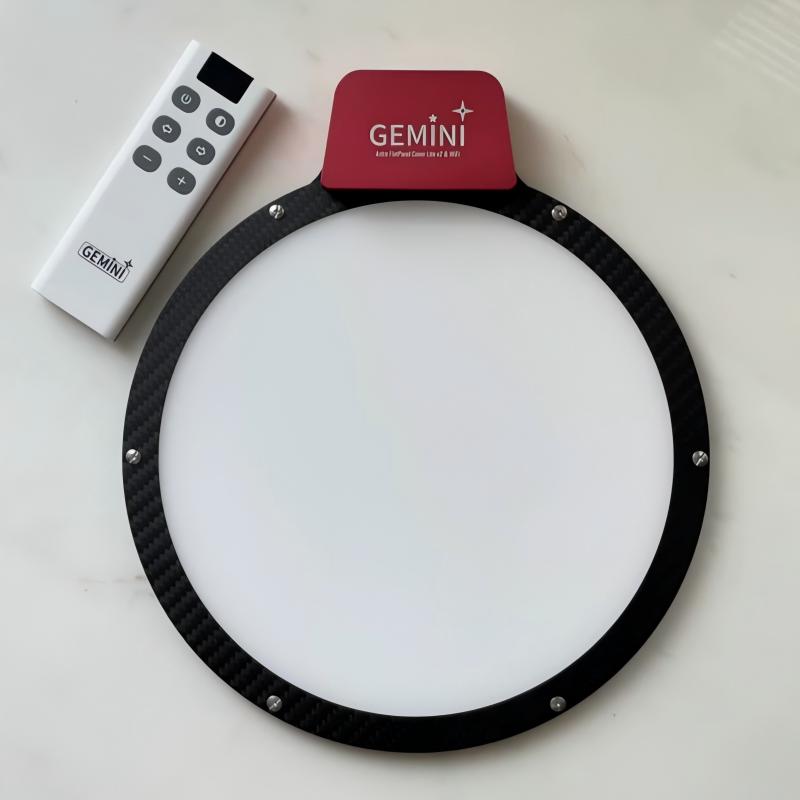

- Flat panel main unit ×1

- USB data cable ×1

- IR remote control ×1
